The range

Everything the pour needs

From nails and plywood to timbers and frames — one supplier, one delivery, from the ground up.

01 / Decking
Central Formply F17
Premium quality. Structurally certified. Built to perform.
F17 structural · Class 2 G2S · 1800 × 1200 × 17 mm
Specs
02 / Bearers & joists
Central Form LVL
Engineered for strength and durability.
95 × 63 × 2400 mm · 95 × 63 × 3600 mm · 150 × 75 × 3600 mm
Specs
03 / Falsework
Central H Frame Sets
The frame behind every successful pour.
2 × 1200 × 1800 × 51 mm · 2 × 1200 mm span
Specs
04 / Column formers
Central Fast Tube
Engineered for speed. Built for strength.
Lightweight column formers · Commercial — large-scale projects
Specs
05 / Carpentry & framing
E10 Structural Timber
Your formwork supplier — now your timber supplier too.
E10 · LVL Central Pine · 90 × 45 mm
Specs
06 / Accessories
Central Bullet Head Nails
2 inch and 3 inch. 15 kg boxes. Ready for the deck.
2 inch · 15 kg box · 3 inch · 15 kg box
Specs
07 / Form ties
Central Coil Tie Bolt
100 pcs per bag. 12 lengths. Ready for the wall.
150 mm – 550 mm · 12 lengths
Specs
08 / Accessories
Z Bar Steel Plate
125 × 100 × 8 mm. Ready for the tie.
125 × 100 × 8 mm · Steel
Specs

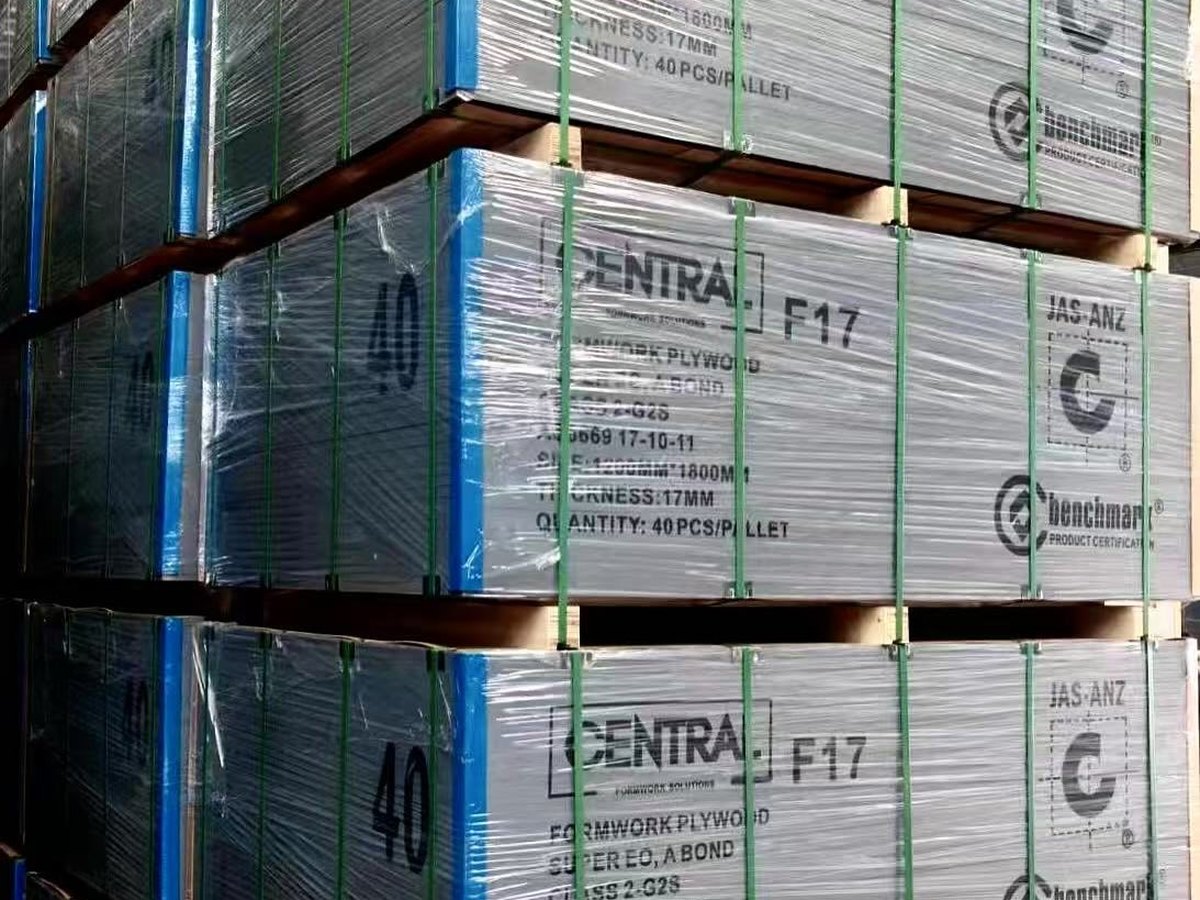

Central F17 formply pallets in the yard — 40 sheets per pallet

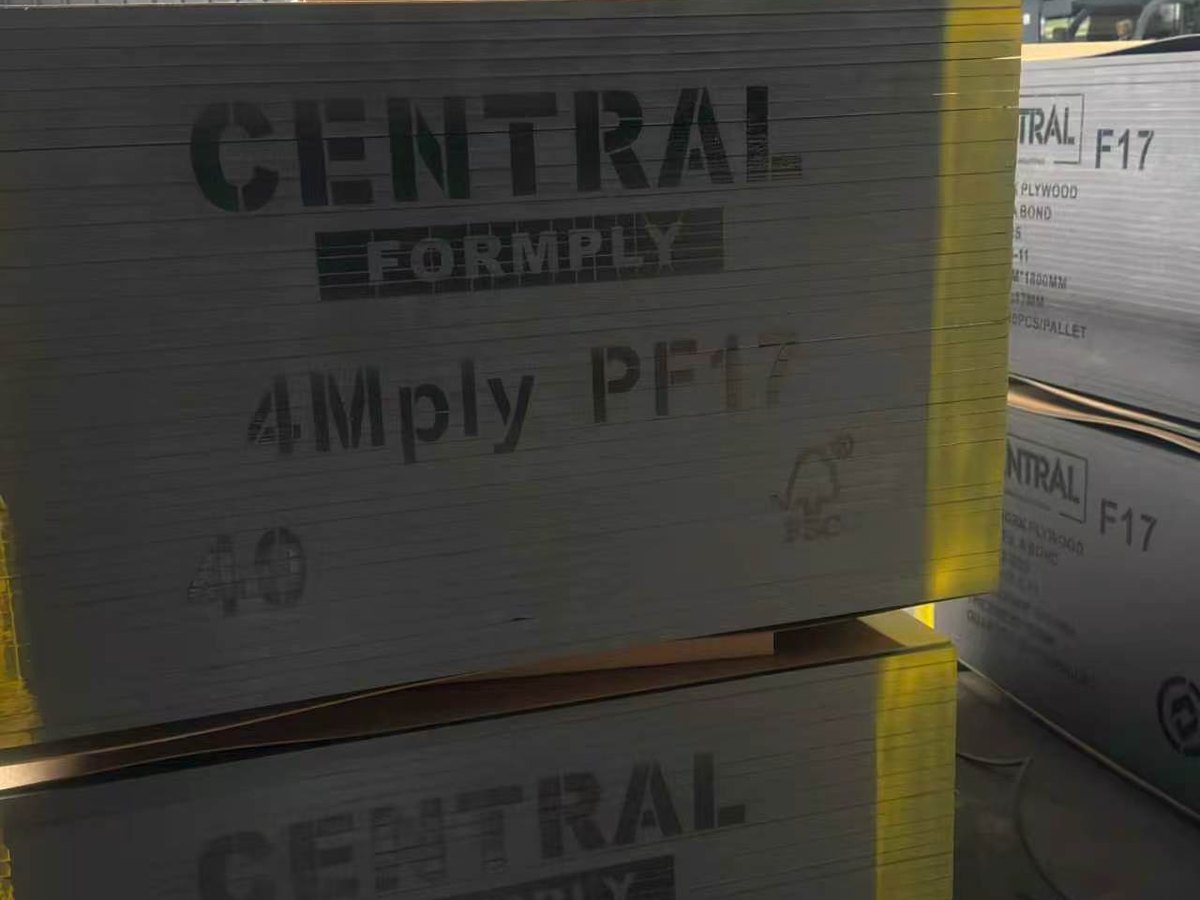

Central Formply PF17 sheets stacked in the warehouse — 40 per pack

01 / Decking

Central Formply F17

Premium quality. Structurally certified. Built to perform.

F17 Formply has landed at Central and is ready for your next pour. Structurally certified sheets built for the demands of commercial and residential formwork — a clean face, a true sheet, and stock sitting in the yard.

Grade: F17 structural · Class 2 G2S
Sheet size: 1800 × 1200 × 17 mm
Bond / emissions: A-bond · Super E0
Standard: AS 6669 · JAS-ANZ · FSC
Pack: 40 sheets per pallet
Availability: In stock — pickup or delivery

Central-branded F17 formwork plywood
AS 6669 certified, Super E0, A-bond, Class 2 G2S
40 sheets per pallet, ready to move
Built for commercial and residential pours

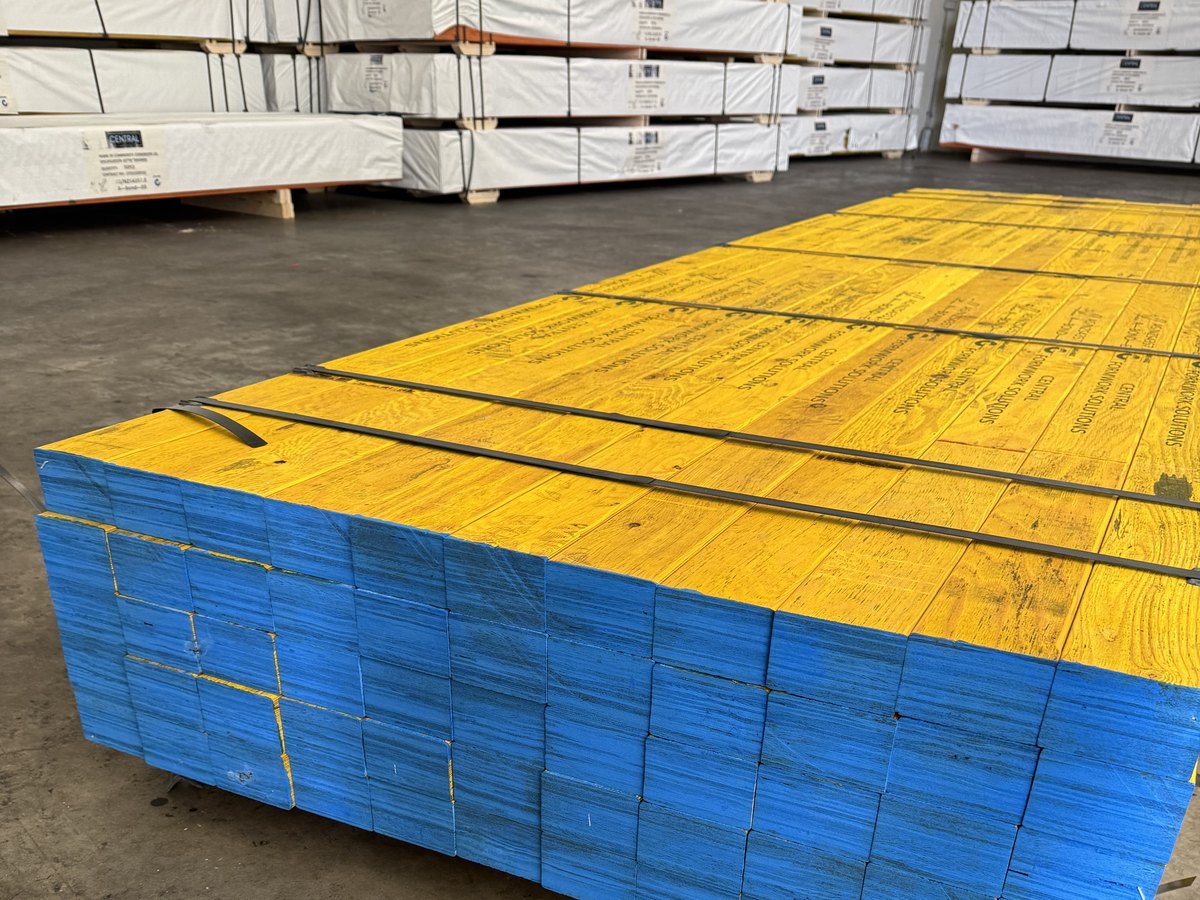

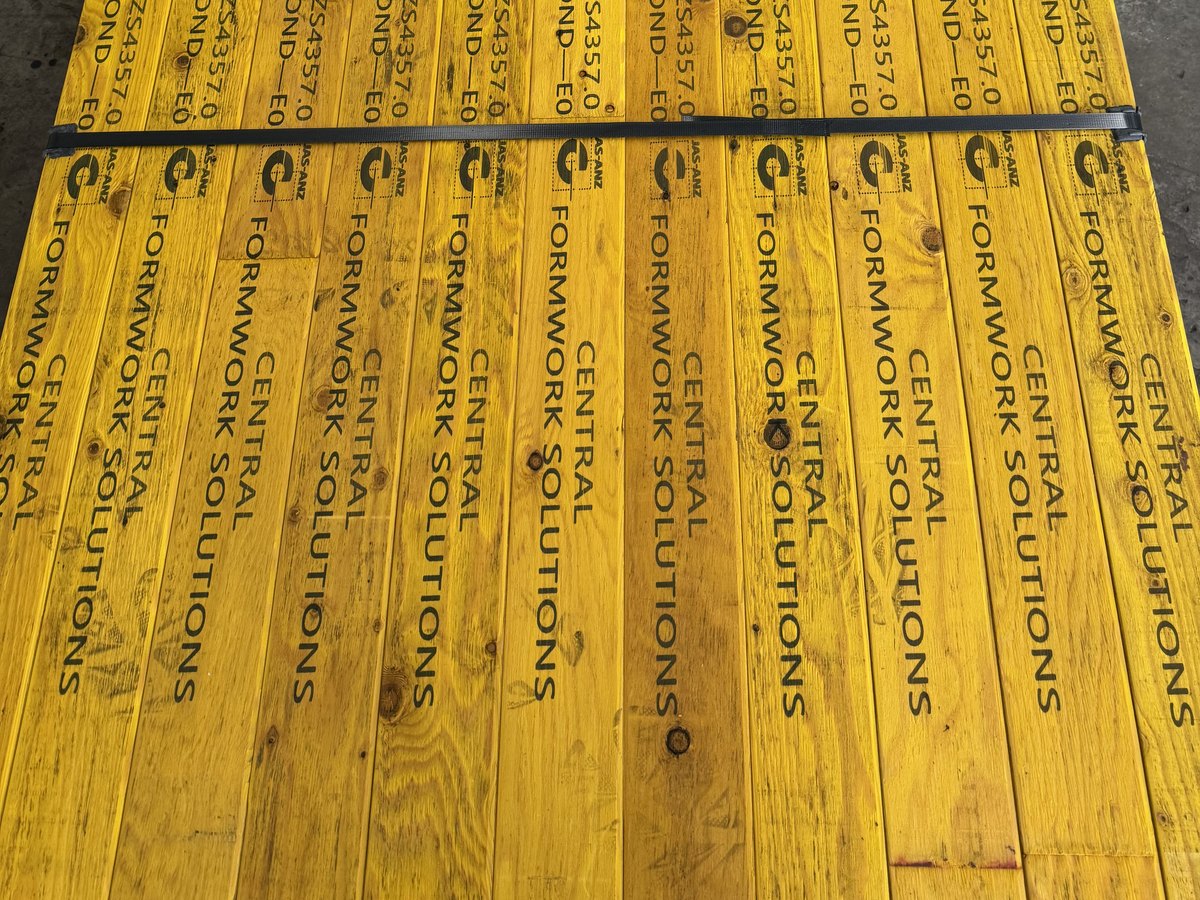

Central Form LVL pack in the warehouse — yellow faces, blue ends

02 / Bearers & joists

Central Form LVL

Engineered for strength and durability.

Central Form LVL is the bearer you can trust under the deck. E12 structural grade, three sizes in stock, engineered for formwork, framing and load-bearing work — premium quality, consistent section, and lengths that suit the slab.

Sizes in stock

Grade: E12 structural
Standard: AS/NZS 4357.0 · A-bond · E0
Certification: JAS-ANZ
Use: Formwork, framing, load-bearing

Central Formwork Solutions branded LVL
Three sizes in stock — 95 × 63 × 2400, 95 × 63 × 3600, 150 × 75 × 3600
AS/NZS 4357.0, A-bond, E0, JAS-ANZ certified
Pickup or delivery across Sydney

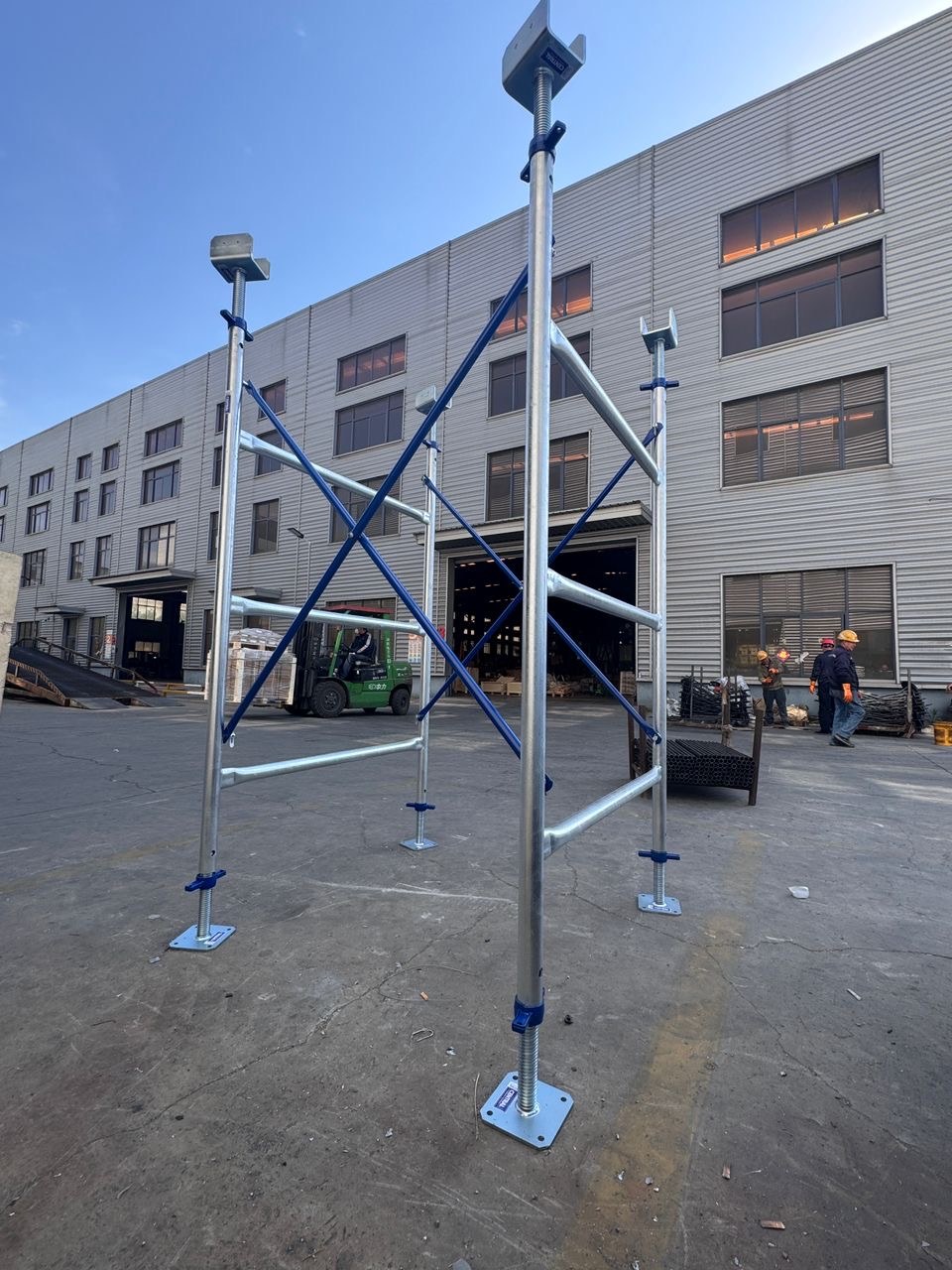

Central H Frame set assembled in the yard — frames, blue braces and jacks

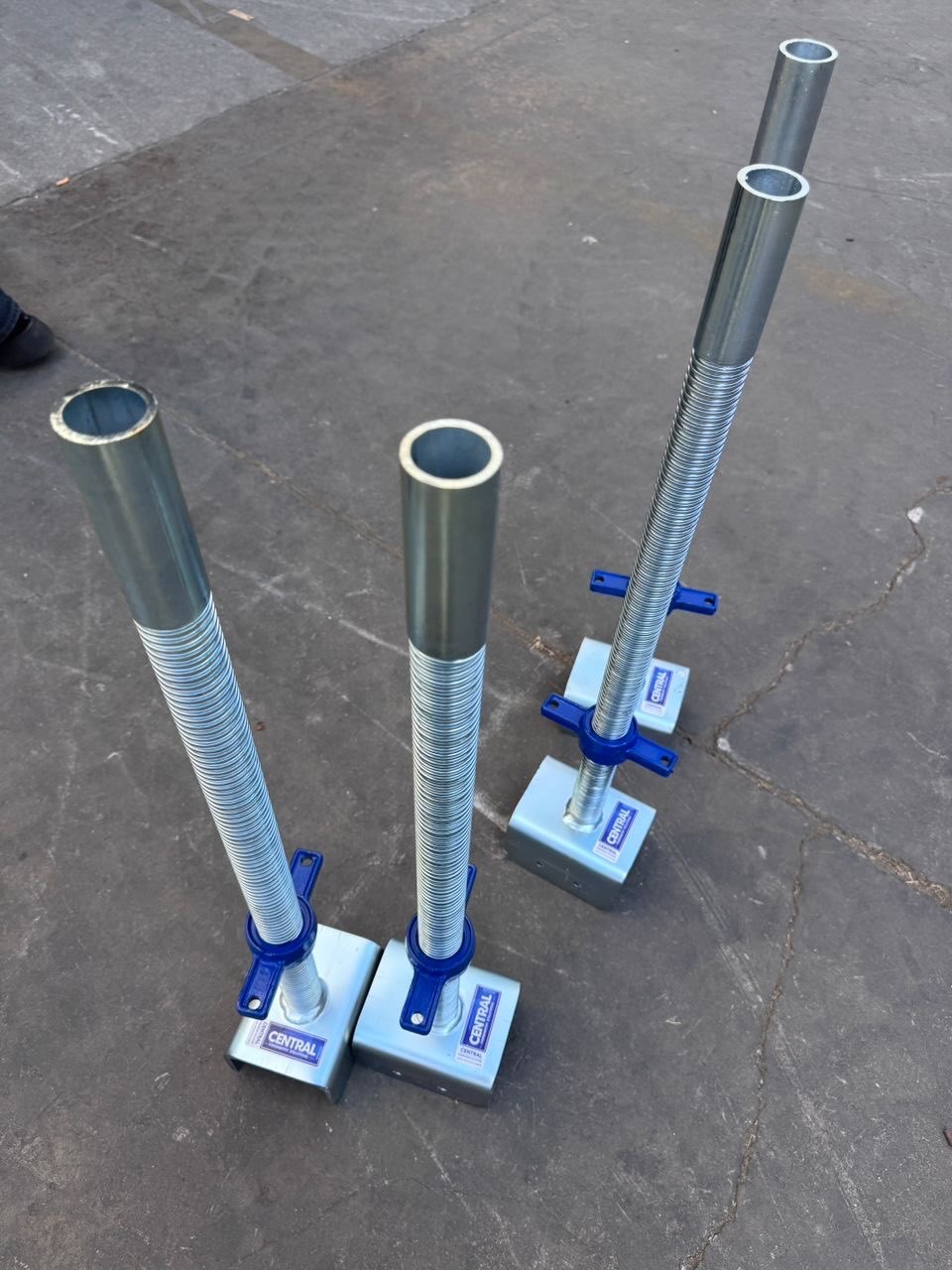

Central branded U jacks and flat jacks with blue wing nuts

03 / Falsework

Central H Frame Sets

The frame behind every successful pour.

When strength, safety and reliability matter, Central H Frame Sets deliver. Each set arrives ready for the deck: two frames, two cross braces, four U jacks and four flat jacks — the backbone of a suspended slab that has to go in right, first time.

Frames: 2 × 1200 × 1800 × 51 mm
Cross braces: 2 × 1200 mm span
U jacks: 4 per set
Flat jacks: 4 per set
Finish: Galvanized steel · Central branded

Complete set — 2 frames, 2 braces, 4 U jacks, 4 flat jacks
Frames 1200 × 1800 × 51 mm with 1200 mm span braces
Central-branded jacks, galvanized for Australian sites
Pairs with Central Form LVL and Central Formply

04 / Column formers

Central Fast Tube

Engineered for speed. Built for strength.

Built for the demands of commercial and residential formwork, Central Fast Tube delivers the strength, speed, off-form finish and reliability your columns deserve. Lightweight to handle, heavy-duty in the pour, faster to install and strip.

Type: Lightweight column formers
Grade: Commercial — large-scale projects
Finish: Clean off-form concrete
Strip: Fast strip, faster turnaround

Lightweight — easy to handle and transport
Durable — built for tough site conditions
Fast strip — smoother finish, faster turnaround
Commercial grade — trusted for large-scale projects

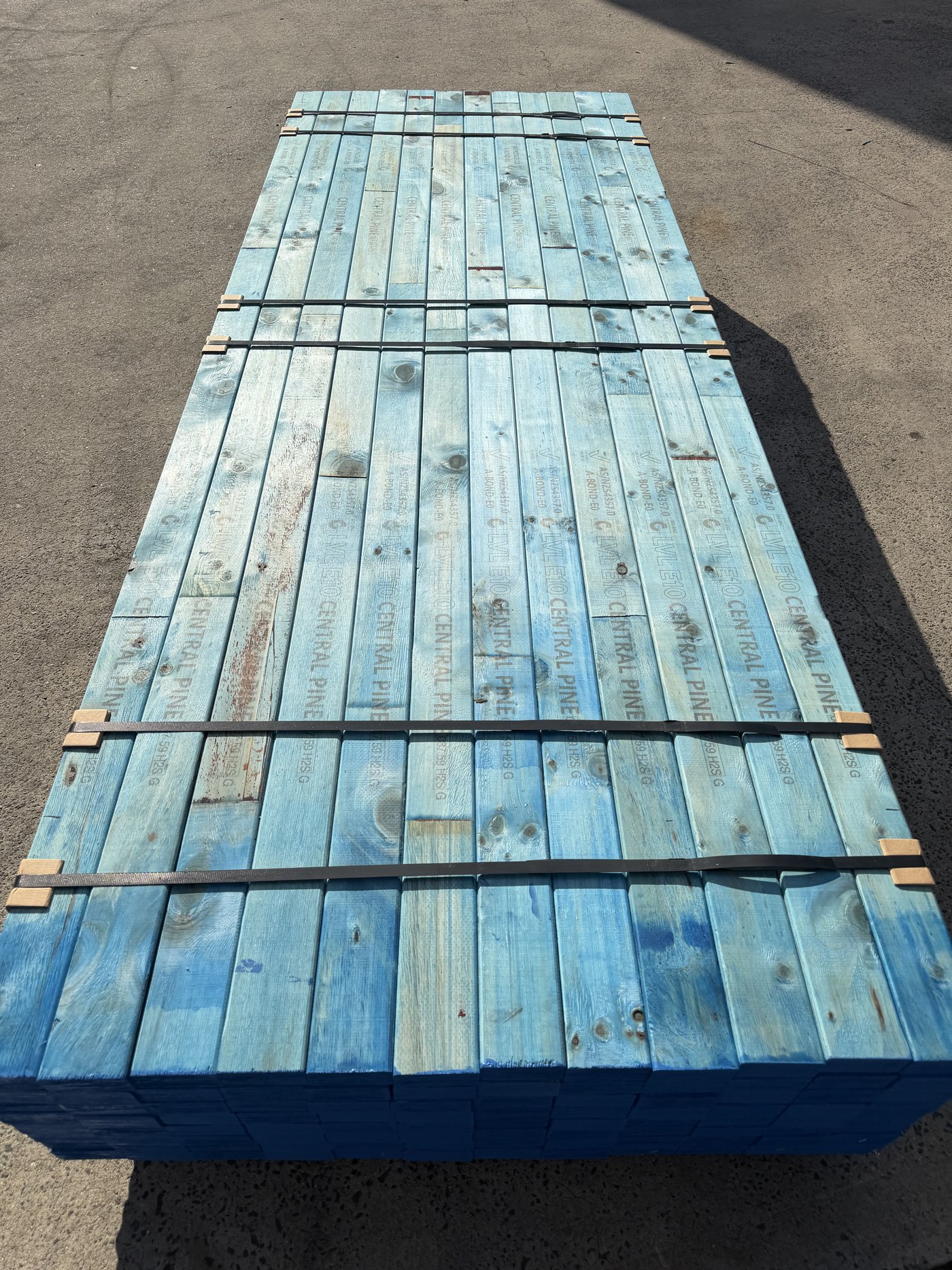

Pack of Central E10 pine 90 × 45 in the yard, blue ends, H2S treated

05 / Carpentry & framing

E10 Structural Timber

Your formwork supplier — now your timber supplier too.

Central is expanding the yard to cover formwork and carpentry under one roof. Central E10 pine is in stock — 90 × 45, H2S treated, ready to go on the same truck as your frames, ply and LVL.

Grade: E10 · LVL Central Pine
Section: 90 × 45 mm
Treatment: H2S
Standard: AS/NZS 4357.0 · A-bond · E0
Lengths: 2.7 m, 3.0 m and 6.0 m

Central E10 pine — 90 × 45 mm in stock
H2S treated, AS/NZS 4357.0, A-bond, E0
Same supplier, same delivery as the formwork pack
Ready to go straight to site

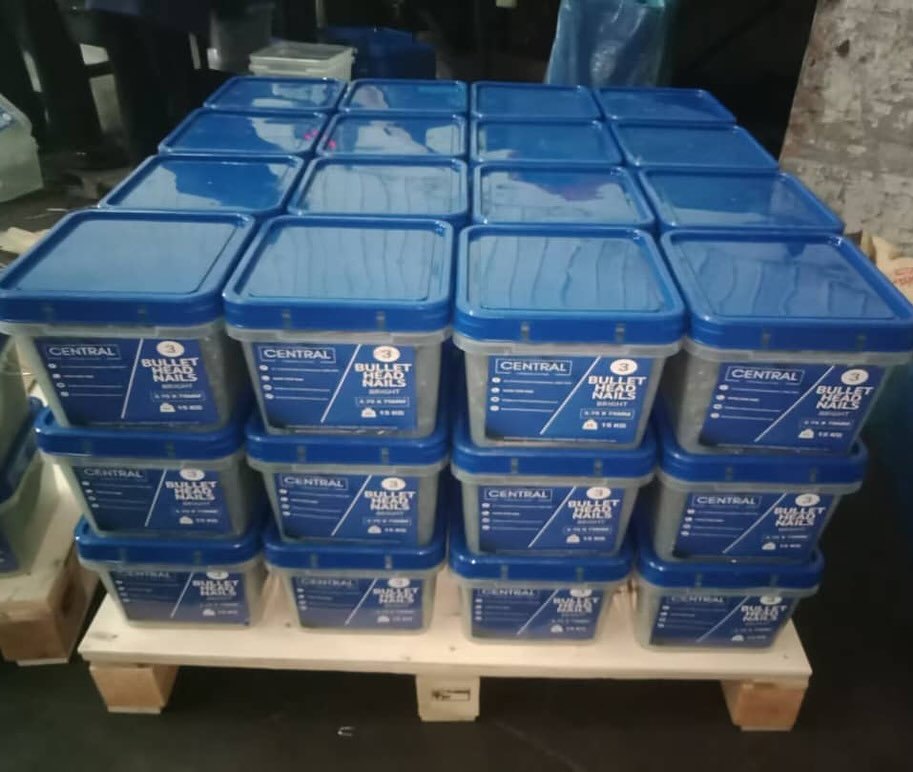

Pallet of Central 3 inch bullet head nails in 15 kg boxes

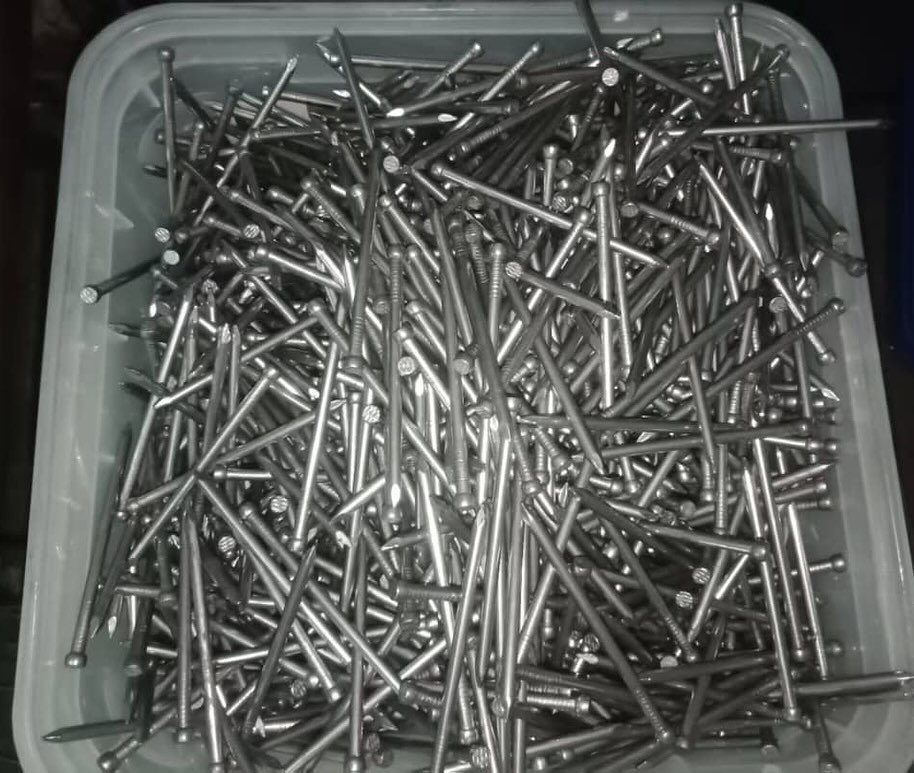

Open tub of Central bright bullet head nails

06 / Accessories

Central Bullet Head Nails

2 inch and 3 inch. 15 kg boxes. Ready for the deck.

Right now the accessory line is Central bullet head nails — bright, in 15 kg boxes. Two sizes in stock: 2 inch and 3 inch. Same order, same truck as the ply, LVL and frames.

Sizes in stock

Type: Bullet head nails · bright
Pack: 15 kg per box
2 inch: 50 × 2.8 mm
Brand: Central

2 inch and 3 inch in stock
15 kg per box — Central branded tubs
Bright bullet head nails for formwork and framing
Goes on the same load as ply, LVL and frames

Central Coil Tie Bolt CTB300 boxes — 100 pcs per box

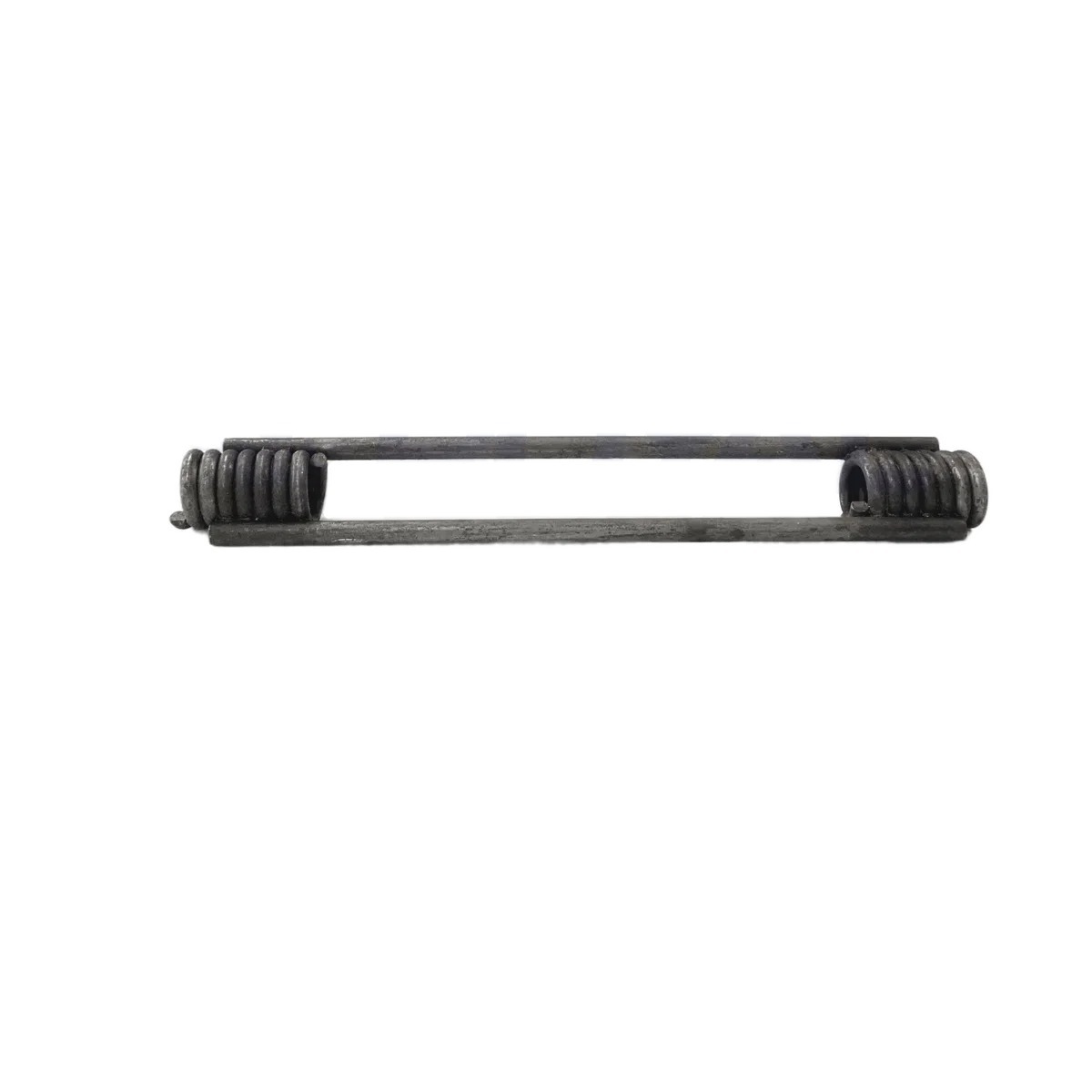

Coil tie spring — two coils with parallel bars

07 / Form ties

Central Coil Tie Bolt

100 pcs per bag. 12 lengths. Ready for the wall.

Central Coil Tie Bolts — high tensile steel, zinc plated, 100 pieces to a bag. Pick the length you need from 150 mm to 550 mm. Same order, same truck as the ply, LVL, frames and nails.

Sizes in stock

Pack: 100 pcs per bag
Length: 150 mm
Code: CTB150
Material: High tensile steel
Finish: Zinc plated

100 pcs per bag — Central branded packs
12 lengths in stock — 150 mm to 550 mm
High tensile steel, zinc plated
Goes on the same load as ply, LVL, frames and nails

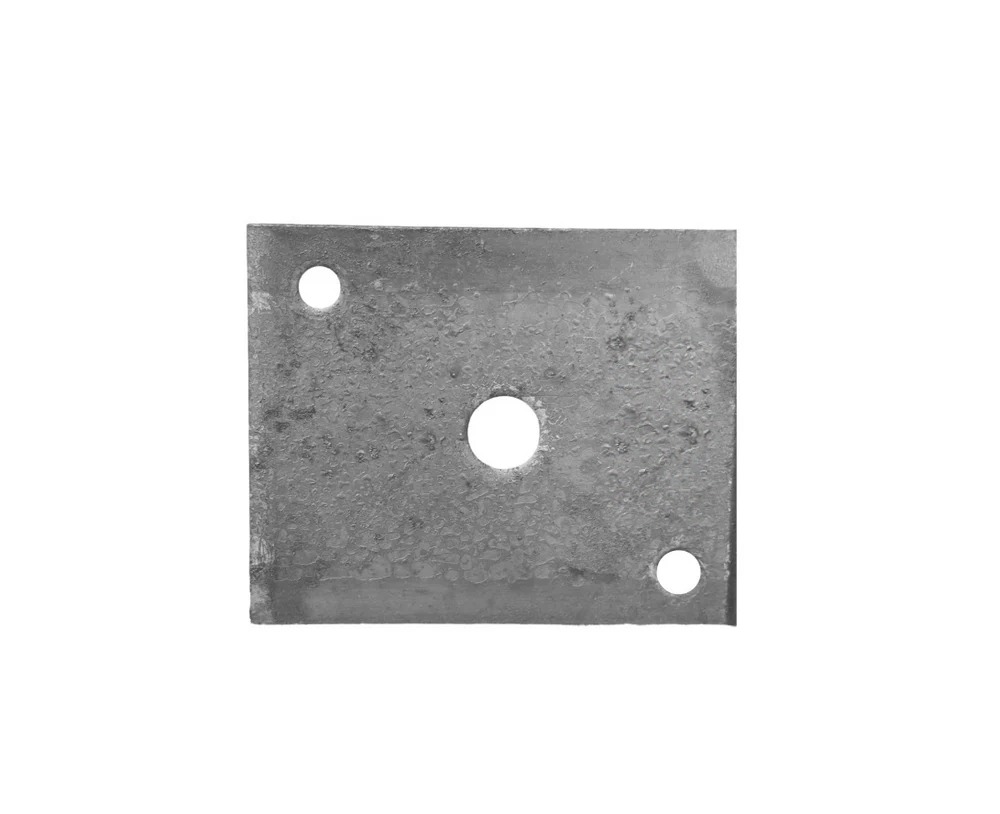

08 / Accessories

Z Bar Steel Plate

125 × 100 × 8 mm. Ready for the tie.

Z bar steel plate for formwork ties — 125 × 100 × 8 mm. Same order as the coil ties, nails and the rest of the pack.

Size: 125 × 100 × 8 mm
Material: Steel
Holes: 3

125 × 100 × 8 mm
Three-hole plate for formwork ties
Pairs with Central Coil Tie Bolts
Goes on the same load as the rest of the pack

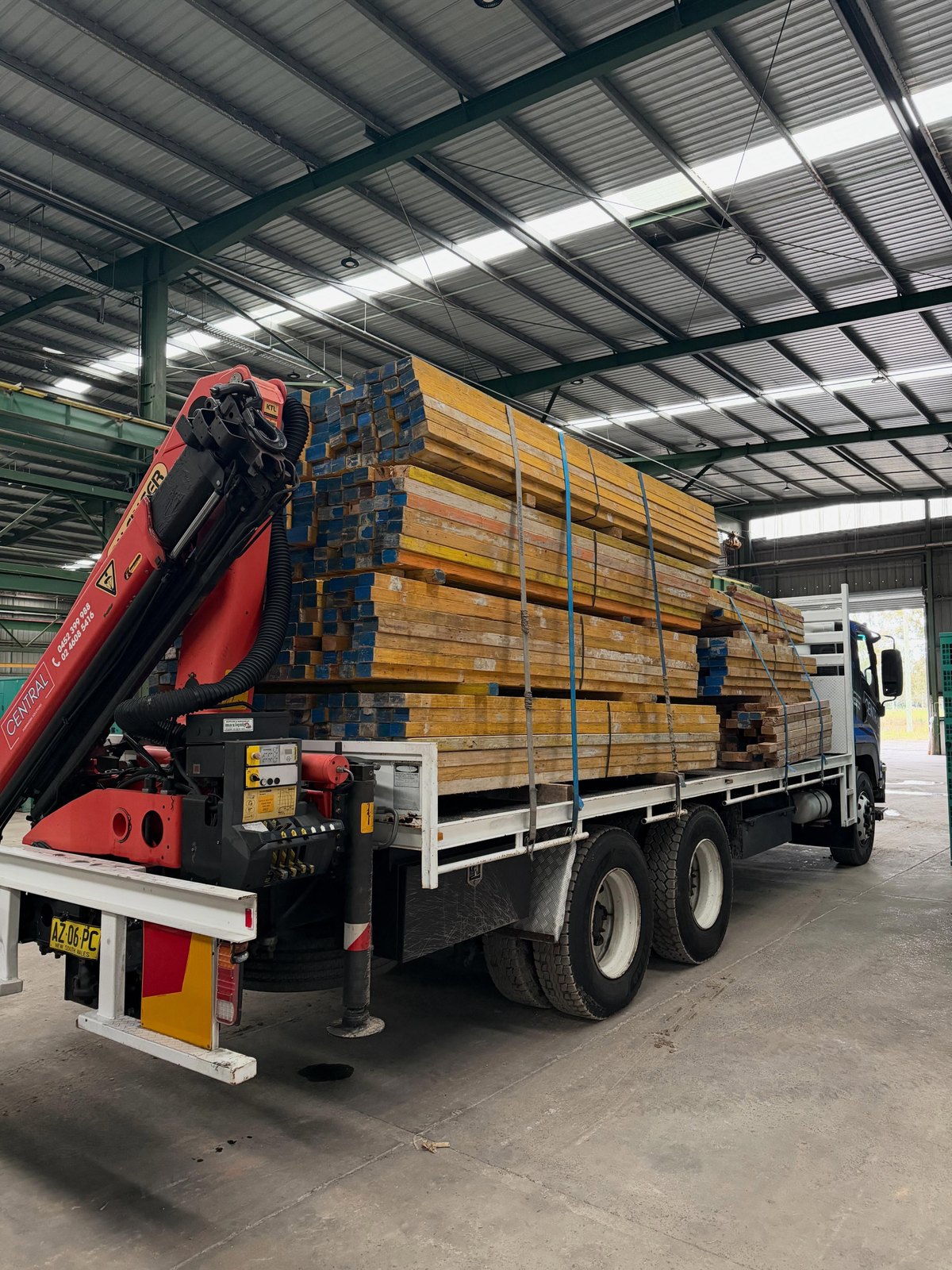

Delivery & transport

Fast to site. Ready to pour.

Pickup from the yard or delivery to the gate. Greater Sydney as standard — Australia-wide when the job sits further out. Formwork transport across Sydney for materials, transfers and the load that keeps the next pour on program.

Pickup or site delivery
Stock is ready to move. Collect from the yard or have it dropped — Greater Sydney as standard, with fast delivery Australia-wide when the job sits further afield.
Formwork transport — Sydney
Need gear shifted, not just supplied? Central runs formwork transportation across Sydney — materials to site, transfers between jobs, and the load that keeps the next pour on the program.

Based in Macarthur & Greater Sydney (NSW 2560). Call to lock in a drop.

Why Central

When Central is on site, the job keeps moving.

Quality products. Reliable service. Competitive pricing. We supply formworkers and builders who need the pack on the truck, not a story. Commercial or residential — frames to formply, LVL and Fast Tube from the ground up.

One supplier. One delivery.

Frames, formply, LVL, Fast Tube and accessories on a single docket. When Central is on site, the job keeps moving.

Stock ready to move.

The lines in this catalogue are in the yard — not on a boat. Pickup today or delivery to the gate.

Built for Australian sites.

Commercial and residential, suspended slabs and columns. Spec’d for the way NSW formworkers actually pour.

Competitive pricing.

Quality without the premium run-around. Call for a quote and we will sharpen it for the pack you actually need.

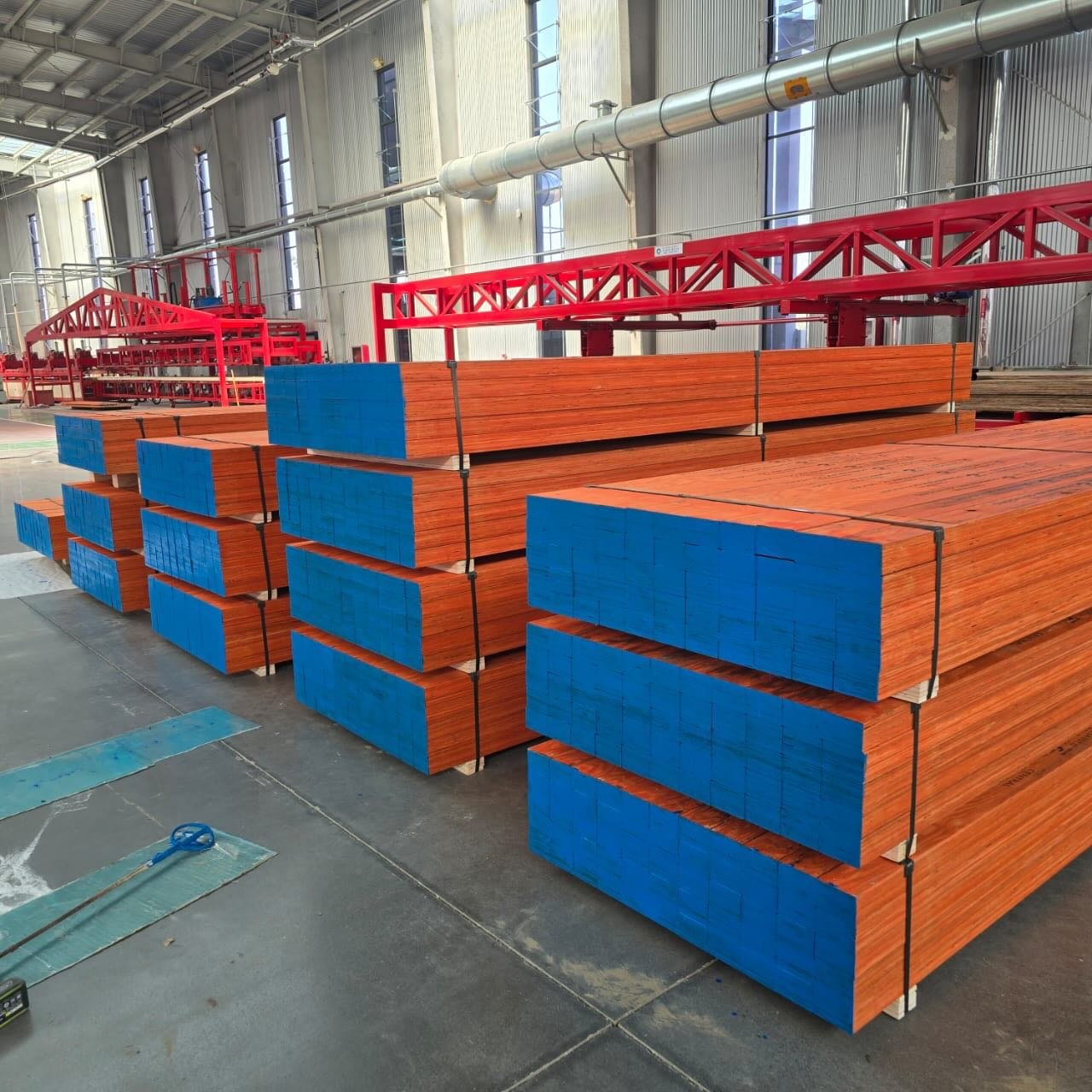

Central Form LVL packs stacked in the mill, ready for the truck — In the yard
Stock on the floor. Ready for the truck.
Central Form LVL, Formply and frames sit packed and ready — not on a boat. Quality products, reliable service, competitive pricing. When Central is on site, the job keeps moving.
Central Form LVL
Central Formply
Central H Frame Sets

Quotes

Send this catalogue. Then send the list.

Print or save as PDF and attach it to your quote emails. Tick the lines you need, add quantities, and we will come back with a pack price — pickup or delivery.

1Print / save as PDF from the top of this catalogue.
2Add products to the quote list with the quantities you need.
3Email the request, or call and we will price it while you are on the phone.

Back cover

Let's get it done.

Formworkers and builders — tag your crew. Central Formwork Solutions is the one-stop yard for the pour: durable, dependable, delivered.

Sales: Leo
Phone: 0433 959 584
Email: leonard@centralformworksolutions.co
Yard: Macarthur & Greater Sydney
NSW 2560
Follow: Instagram Facebook

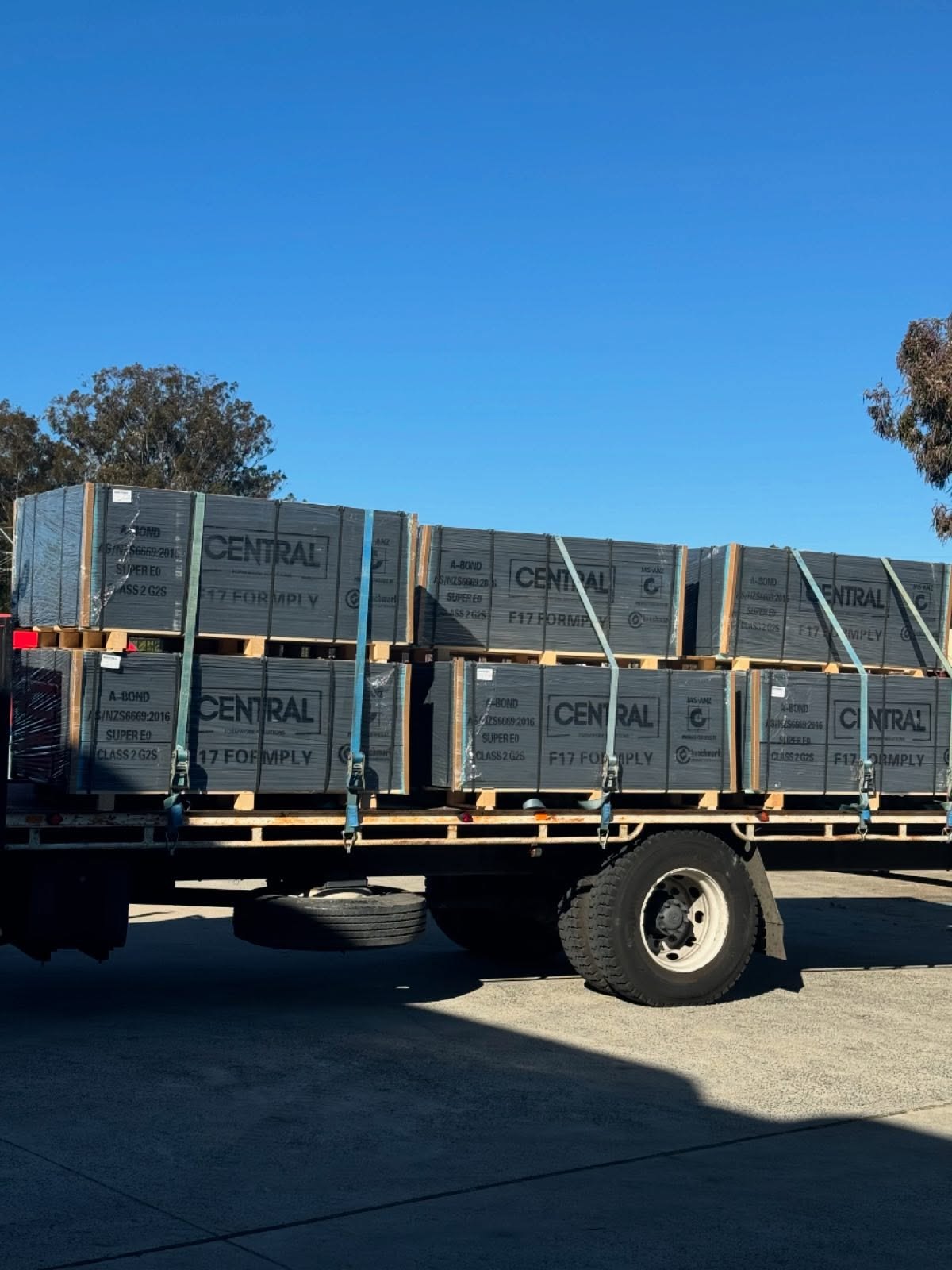

Central F17 Formply strapped on the truck
